Frame Ranger

Source Code is Available For Free at:

https://github.com/BlenderBoi/Frame_Ranger

Frame Ranger is a blender add-on that helps manages Object’s Action, Timeline Markers, Frame Range and more

This Add-on Consist of Multiple Sections, You can Turn On / Off Based On Your Needs in the Preferences

Sections	Description
Frame Range Manager	Stores Frame Range so that you can Switch Frame Ranges Easily
Object Action Manager	Stores Actions in Object so that you can associate actions to a object, and switch the object’s action easily
Timeline Marker Manager	Presents Timeline Markers In A list form as well as adding some operators that make timeline markers more useful, by allowing it to be easily created, bind to camera, or jump to marker.
Action Bin	List Out All the Actions in the Blender File, and helps managing it by providing some basic feature to work on them.
Action Baker	Similar to Game Rig Tool’s Action Bakery that is Based on CGDive’s Workflow, Helps in Baking Multiple Control Rig’s Animation into a Deform / Game Rig (This is Specifically Made for One Specific Workflow)
Frame Remapper	A Destructive Feature that should be use in caution, It will remap all the key frames in the scene base on frame rate, useful for converting animation’s frame rate, because it operates on every object’s key frame, it can be quite destructive.
Auto Frame Range	Automatically Set Frame Range to the first and last key frames when turned on, Works on Object’s Action, NLA Strips and Video Sequencer Strips
Animation Players	Adds the Animation Player Buttons (Play, Pause etc…) and Frame Range Settings from Timeline Editor to Dopesheet, Graph Editor, NLA Editor and Video Sequencer
Timeline Utility Pie	A Pie Menu that provides some helpful features

Frame Ranger Lite (Free on Gumroad)

There is A Simplified Version of Frame Ranger Called Frame Ranger Lite that is Free

Frame Ranger Lite (Gumroad)

Frame Ranger Lite (Blendermarket)

Below Are the Listed Feature Of Frame Ranger Lite

Animation Players	Adds the Animation Player Buttons (Play, Pause etc…) and Frame Range Settings from Timeline Editor to Dopesheet, Graph Editor, NLA Editor and Video Sequencer
Auto Frame Range	Automatically Set Frame Range to the first and last key frames when turned on, Works on Object’s Action, NLA Strips and Video Sequencer Strips
Frame Remapper	A Destructive Feature that should be use in caution, It will remap all the key frames in the scene base on frame rate, useful for converting animation’s frame rate, because it operates on every object’s key frame, it can be quite destructive.

CG Dive Review

Feature Overview

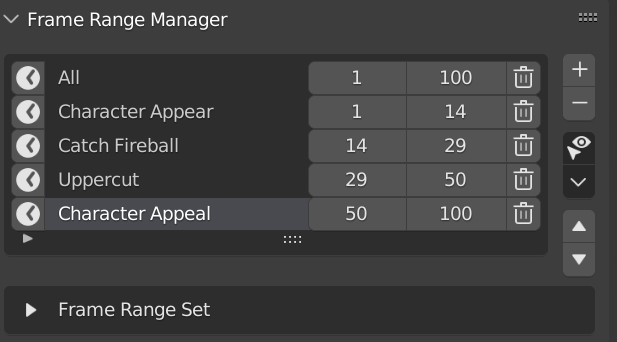

Frame Range Manager

Stores Frame Range in a List so that you can Switch Frame Ranges Easily

Frame Range Switching

This Can Be Useful to Breakdown a Scene to Multiple Chunk and Work on it Without Manually Typing in the Frame Numbers.

The Frame Ranges Can Be Exported and Imported into other Blend Files.

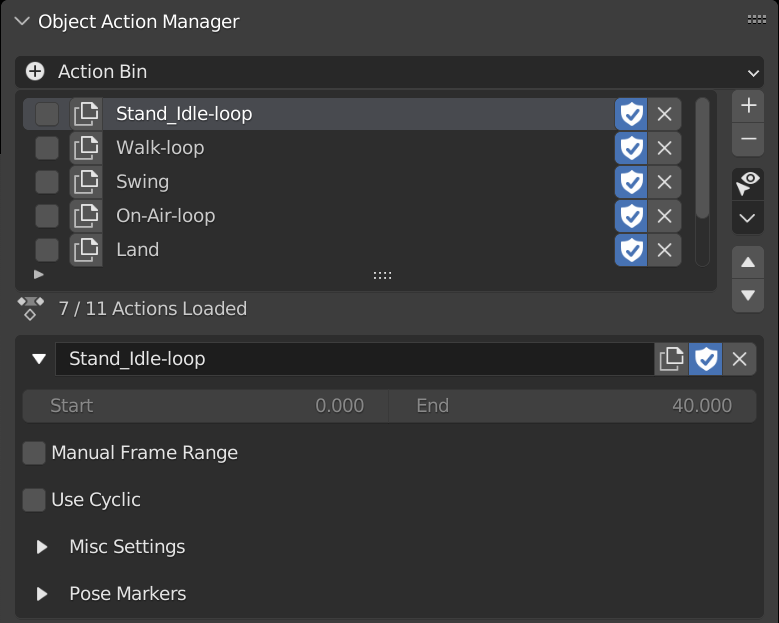

Object Actions Manager

Stores Actions in Object so that you can associate actions to a object,
and switch the object’s action easily. It Also Comes With Many Other
Feature that can be useful

Important: This does not work on linked library override

Action Switching

Quickly Switch Object’s Action, and setting the frame range to the action’s first and last keyframe or manual frame range settings.

Import FBX Action

Frame Ranger comes with a wrapper operator that import fbx and remove everything other than the actions, that means you will only import the action instead while other stuff that imported from the fbx will be discarded.

The Action is then Loaded to Object Action Manager. You have the option to use the Build In Import FBX.

This can be useful for combining multiple mixamo fbx into one for game engine use.

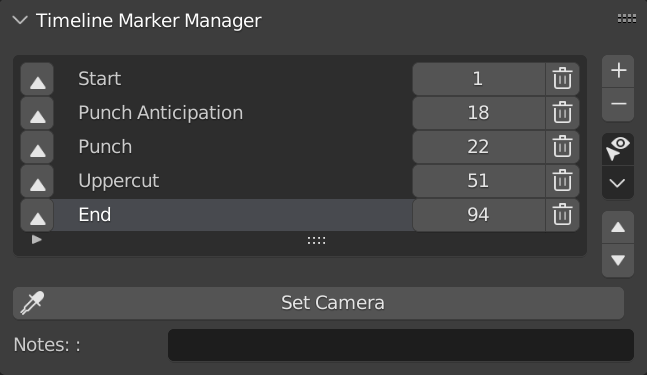

Timeline Markers Manager

Presents Timeline Markers In A list form as well as adding some
operators that make timeline markers more useful, by allowing it to be
easily created, bind to camera, or jump to marker.

Bind Camera From View to Marker

Create Marker at Current Frame, Create Camera at Camera View and bind Camera to Marker

Import & Export Markers

You can Import and Export Markers between blend files

Jump To Markers

Jump Current Frame to Markers

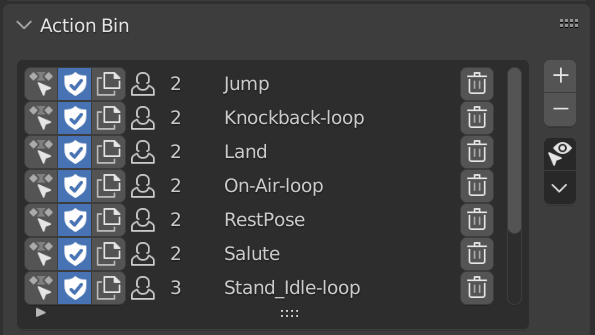

Action Bin

List Out All the Actions in the Blender File, and helps managing it by providing some basic feature to work on them.

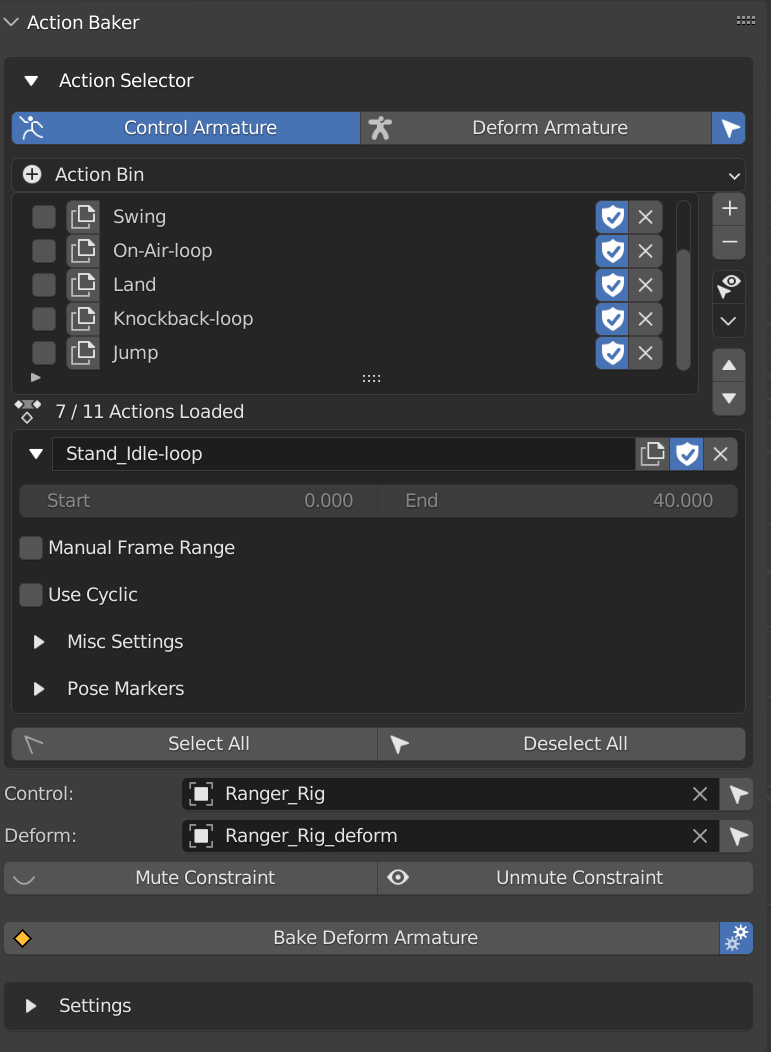

Action Baker

Similar to Game Rig Tool’s Action Bakery that is Based on CGDive’s
Workflow.

Bake Deform Armature

Helps in Baking Multiple Control Rig’s Animation into a Deform
/ Game Rig (This is Specifically Made for One Specific Workflow)

Auto Frame Range

Automatically Set Frame Range to the first and last key frames when
turned on, Works on Object’s Action, NLA Strips and Video Sequencer
Strips

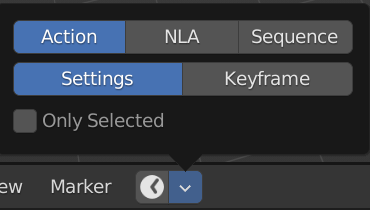

Auto Frame Range Have 3 different modes

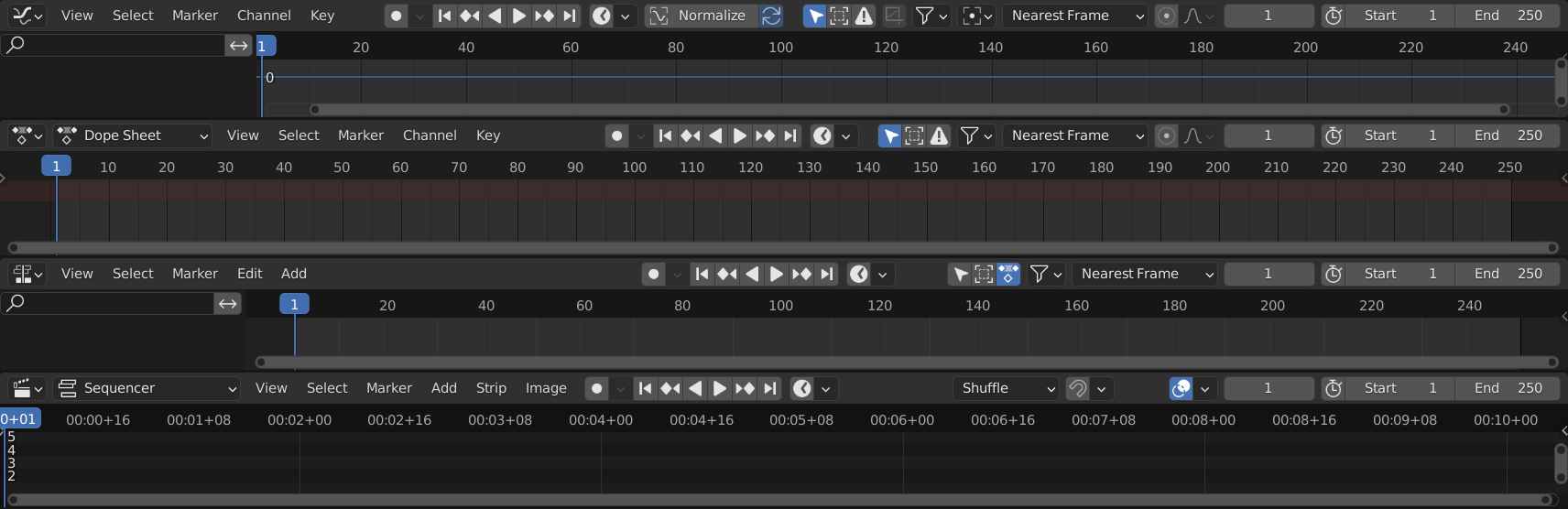

Animation Player

Adds the Animation Player Buttons (Play, Pause etc…) and Frame Range
Settings from Timeline Editor to Dopesheet, Graph Editor, NLA Editor and
Video Sequencer
